Launch Control XL 3 appendix

13 June 2025 15:26 Updated

Default Mode (16) parameters

You can't edit Mode 16, instead it's a default set of the following CCs that send on MIDI channel 16.

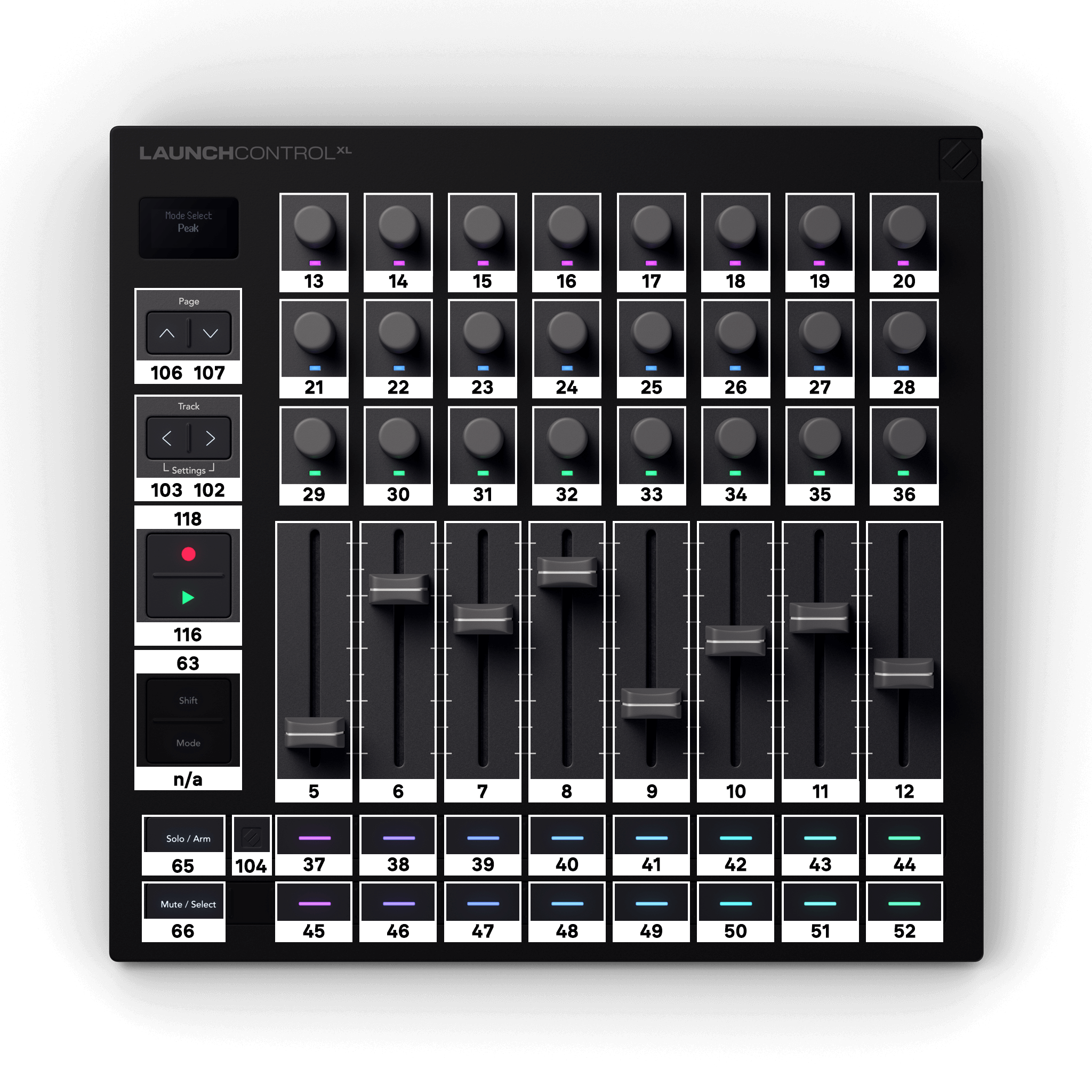

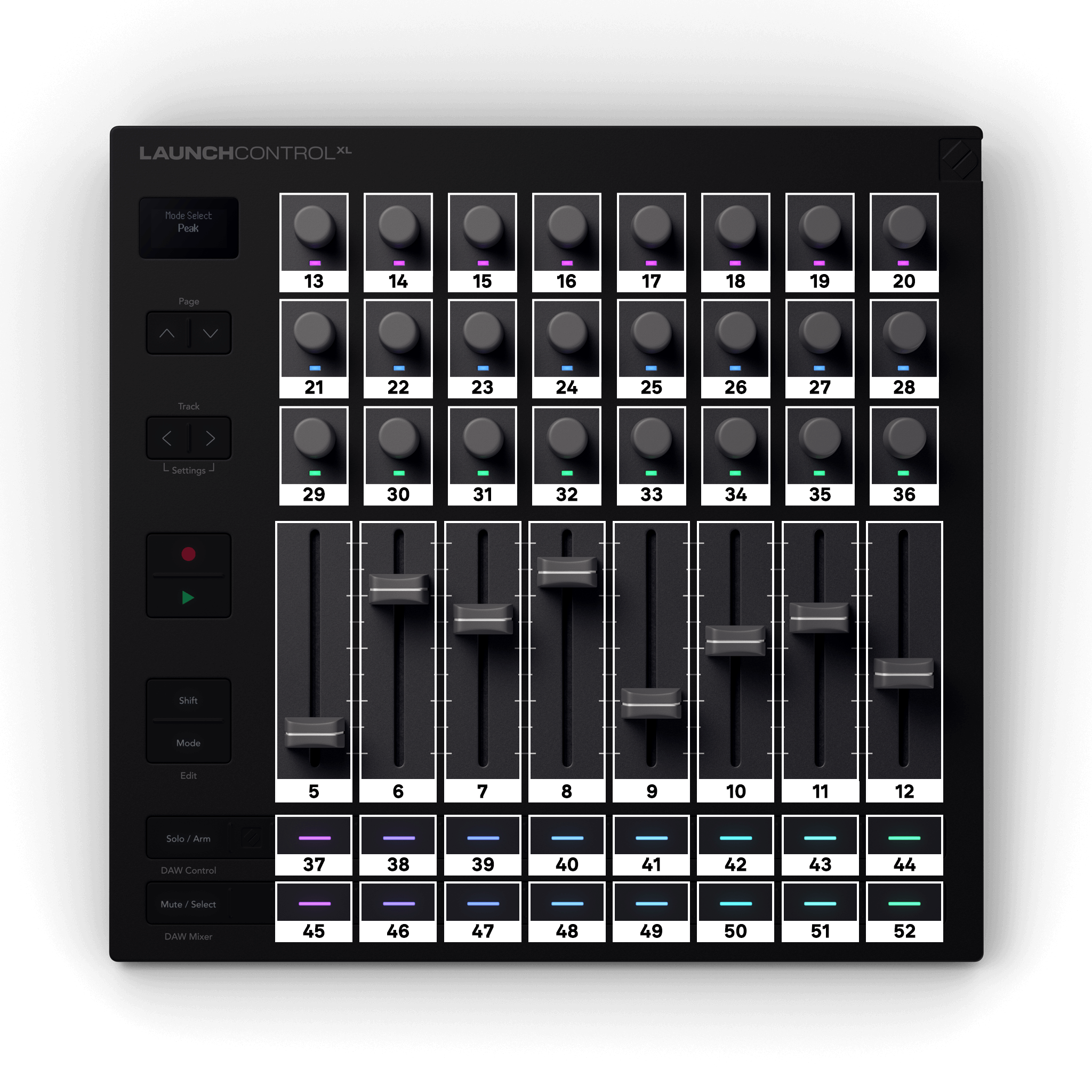

Launch Control XL 3 with an overlay of the default settings for Mode 16. - Encoders 1-24, CCs 13 - 36. - Faders CCs 5 - 12 - Buttons CCs 37 - 52 - Page buttons 106/107 - Track buttons 103/102 - Record/Play 118/116 - Shift/Mode 63/n/a - Solo/Arm and Mute/Select 65/66 - Novation button 104
