Controls |
|
|---|---|
|
Screen |
OLED Display |
|
Encoders |
24 encoders with RGB LED lights. |
|
Faders |
Eight 60mm throw faders. |
|
Buttons |
16 buttons, two below each fader. |
|
Navigation |
Two encoder Page up and down buttons. Two Track left and right buttons. |
|
Transport buttons |
Record Play |
|
Other buttons |
Shift - for accessing secondary functions. Mode - to change the rest of the control surface controls. |
|
Connectivity |
1 x USB-C port - for power and data. 3 x MIDI ports - In, Out and Out2/Thru. Out and Out2/Thru support power over MIDI, up to 3.3V, 10mA. Kensington Lock port. |
|
Weight |
902g (1.99lbs) |
|
Height |
43mm (1.69") including knob caps |
|
Width |
250mm (9.84") |
|
Depth |
239mm (9.41") |

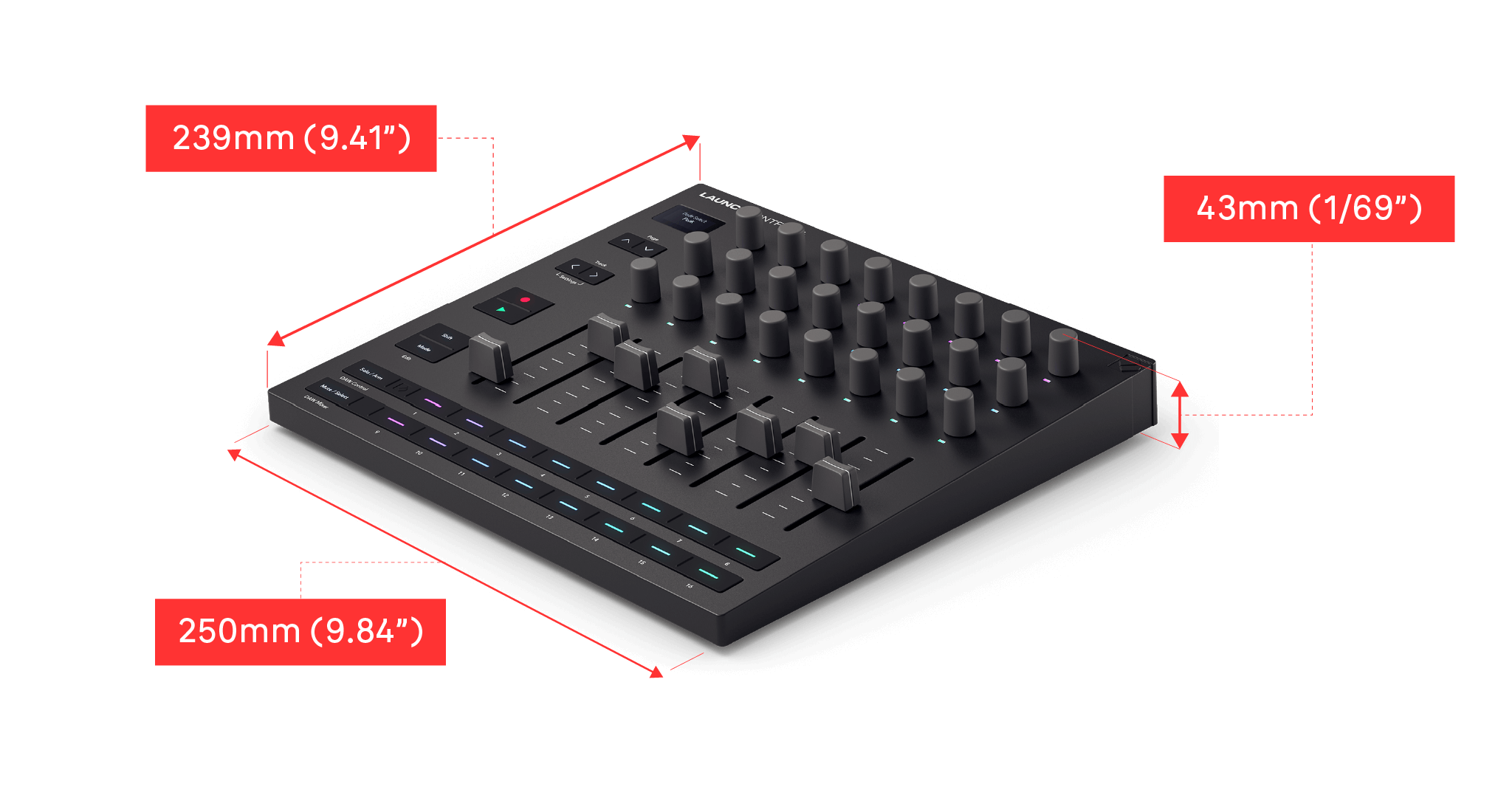

A diagram of the Launch Control XL 3 with dimensions.
