MiniNova Editor's Filter tab

Updated

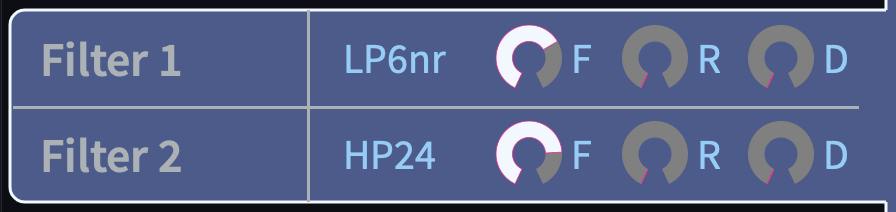

At a glance, the Filter tab shows the:

  • Filter type

  • Cut-off frequency

  • Resonance

  • Filter Drive

Filters


The filter section is divided in two, with a set of parameters for each Filter. To change the filter type, click the visual representation in the middle to see a drop-down list.

For more information on the Filters, see pages 17 to 20 of the MiniNova user guide.

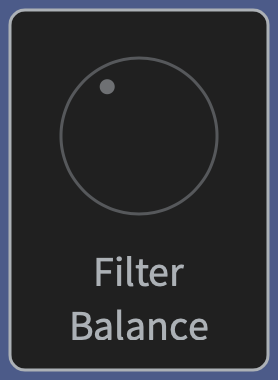

For more information on Filter Balance, see pages 18 and 19 in the MiniNova user guide.

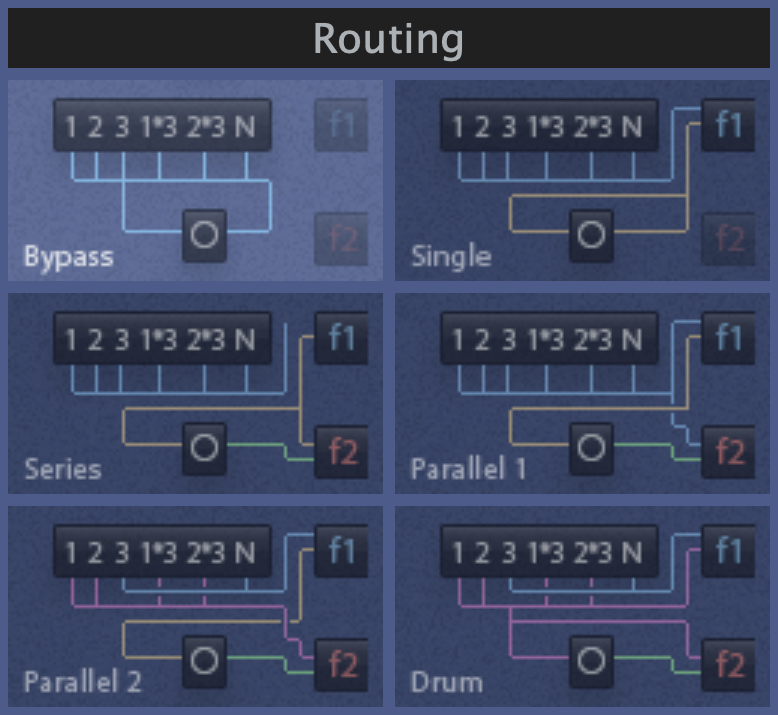

Filter Routing


There are six Filter Routing options, as shown by the graphics. The currently selected Filter Routing option is highlighted. Click another graphic to change the Filter Routing.

For more information on Filter Routing see pages 19 and 20 in the MiniNova user guide.

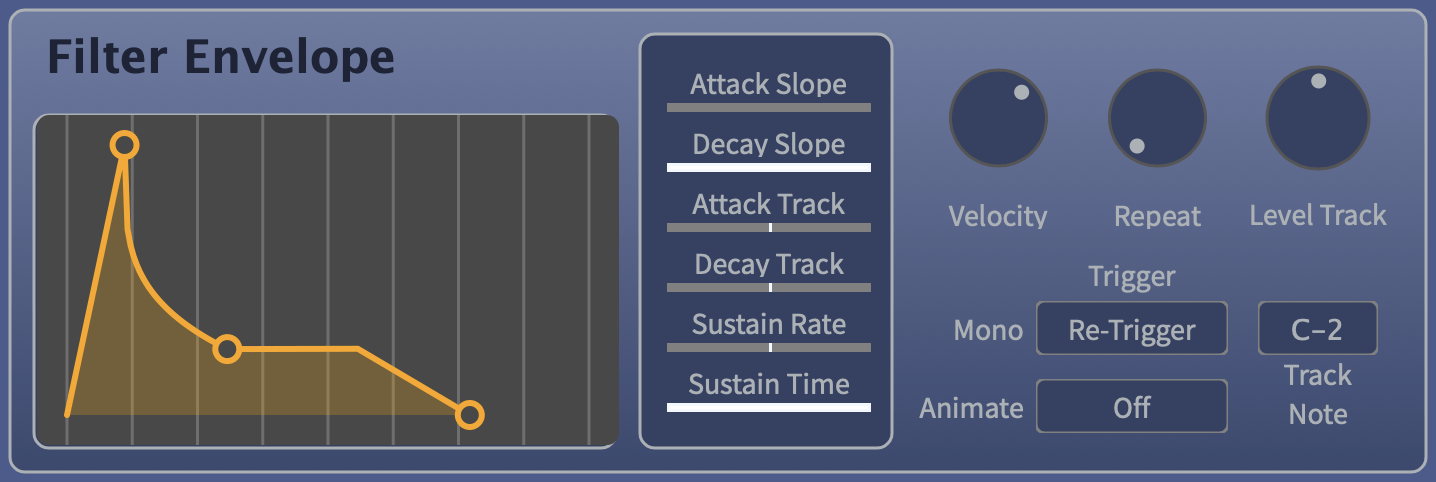

Filter Envelope


Use the handles on the yellow graph to adjust the ADSR times and levels, and use the faders to the right to adjust the slope of the ADSR.

For more information on the Filter Envelope, see page 23 of the MiniNova user guide.
