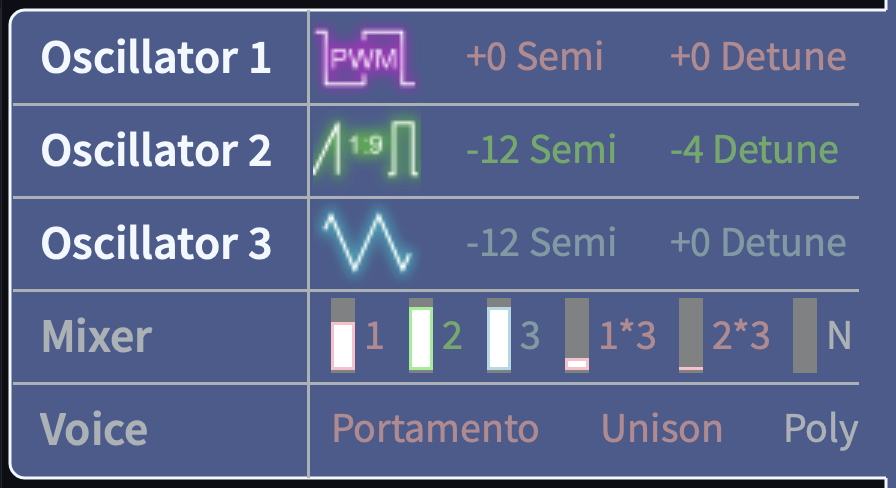

The Oscillator Mixer Voice tab shows you at a glance:
-
Each Oscillator's Wave shape.
-
The coarse and fine-tuning for each oscillator
-
The mix levels of the three oscillators, Ring Mod and Noise oscillator.
-
The Voice setting for the Patch.

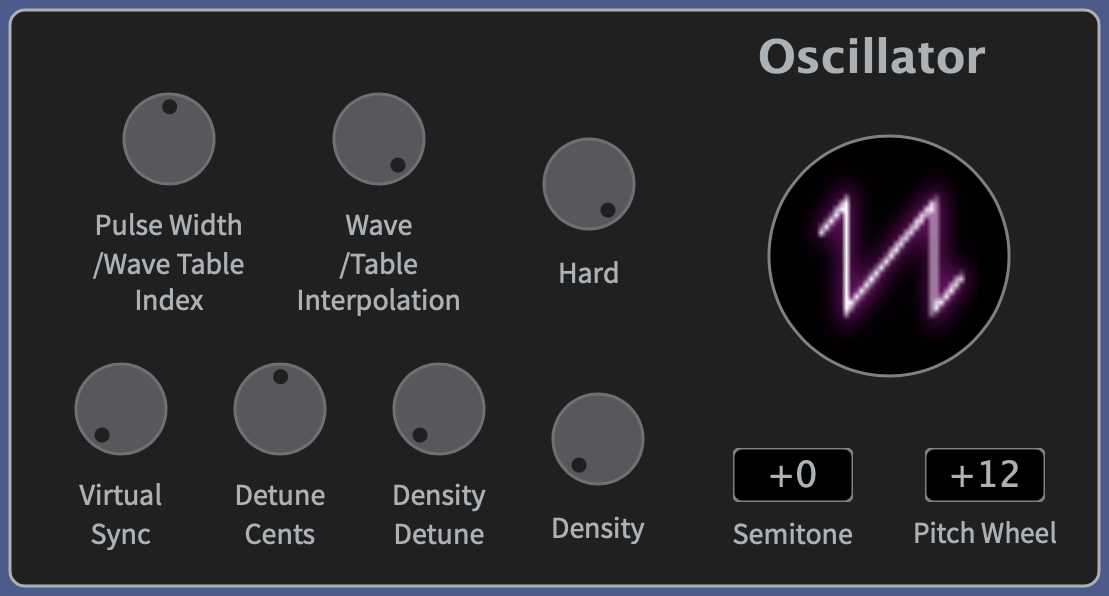

The Oscillator panel allows you to control all the settings for each of the three Oscillators.
To change the Wave Shape, click the Wave's image to show a list of the available wave shapes.
For more information on the Oscillator settings, see pages 15 - 17 in the MiniNova user guide.

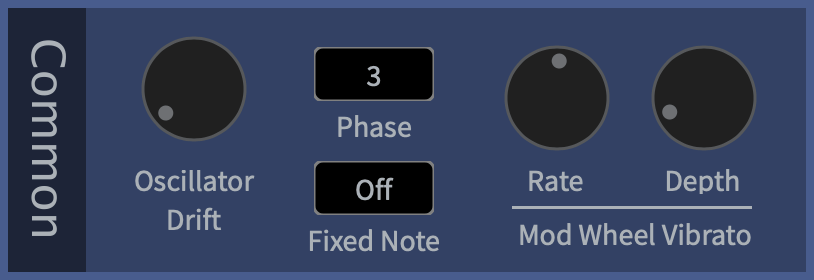

The Common section refers to parameters common to all three oscillators.
For more information on the Common oscillator settings, see pages 16 and 17 in the MiniNova user guide.
Click the Type dropdown to change the Noise oscillator type.
For more information on the Noise Parameter, see page 17 in the MiniNova user guide.

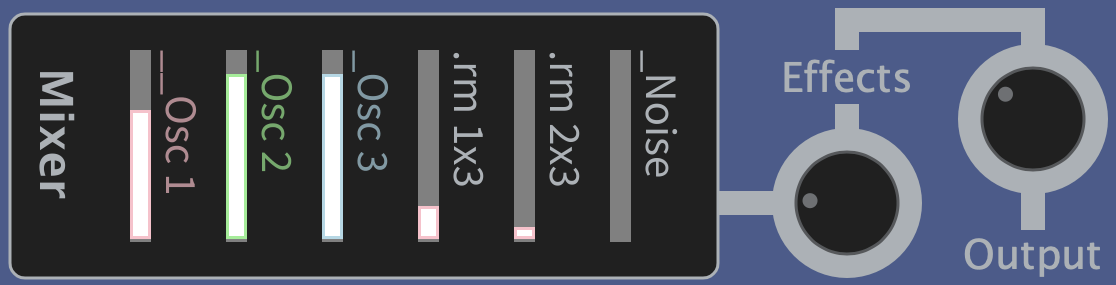

The Mixer lets you adjust the level of the three oscillators, ring modulators and noise oscillators.
To adjust the level, click inside the bar to the left of the oscillator name.
The Effects control controls the level of the PreFXLvl and PostFXLvl parameters.
For more information on the MiniNova's Mixer, see page 17 in the MiniNova user guide.

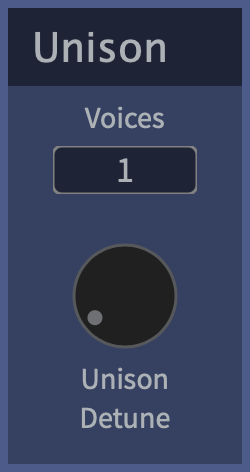

Click in the Voices box and drag up and down to adjust the number of voices.
For more information on the Unison setting, see page 20 in the MiniNova user guide.

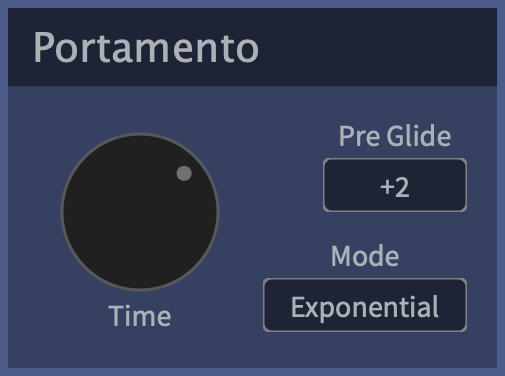

Click in the Pre Glide and Mode boxes and drag them up or down to adjust the values.
For more information on the Portamento setting, see pages 20 and 21 in the MiniNova user guide.
Click the Polyphonic Mode dropdown to choose from the available modes.
For more information on the polyphony setting, see page 21 of the MiniNova user guide.
