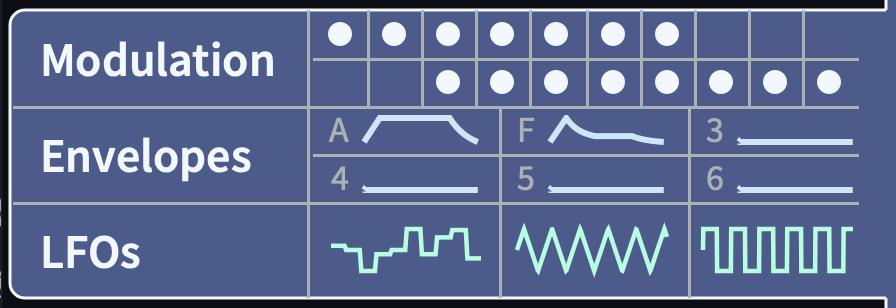

The Modulation, Envelopes, and LFO tab shows you at a glance which modulation slots are in use, the rough shapes of each Envelope and each LFO's wave shape.

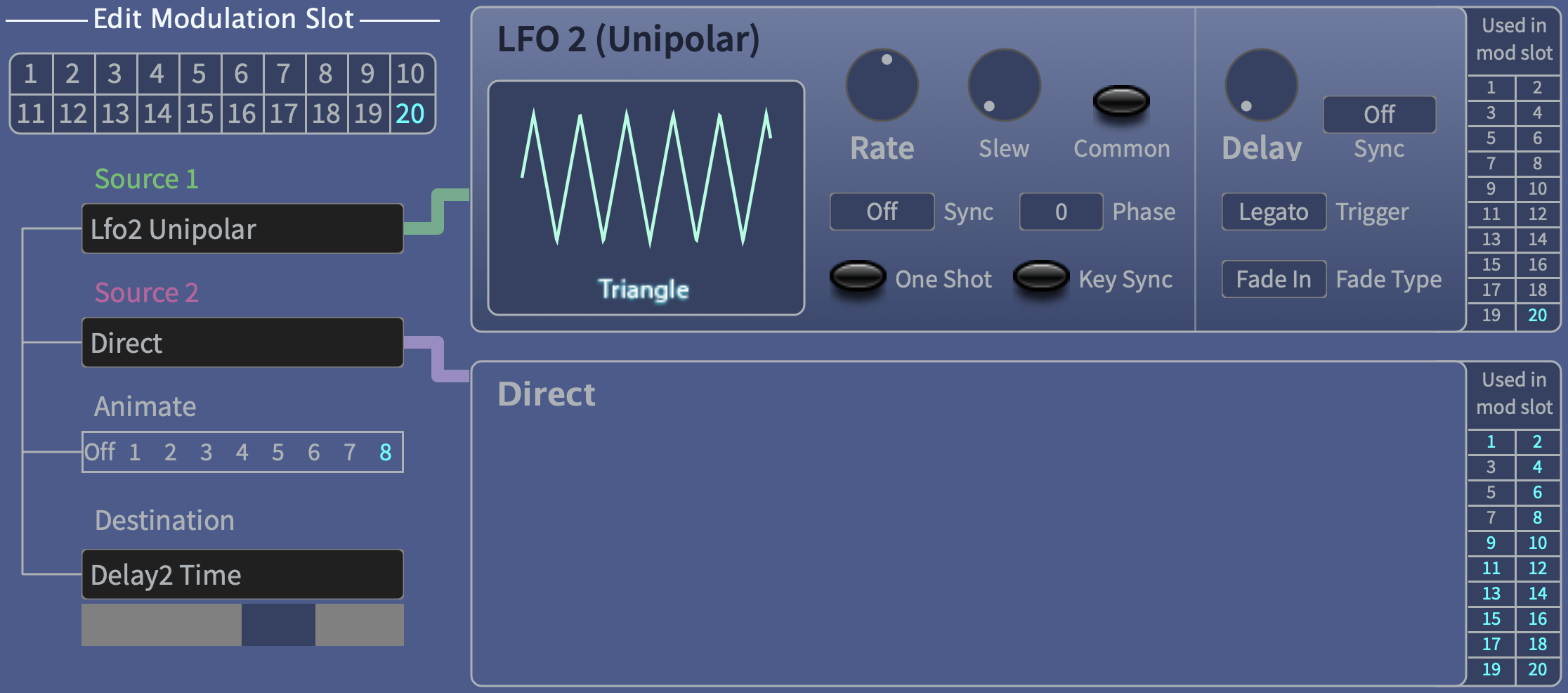

To edit a modulation slot you can click one of the 1-20 modulation slots in the top left corner then go through each of its Source, Animate and Destination parameters. Source parameters are on the right-hand side.
For more information on editing modulation slots, see pages 26 and 27 of the MiniNova user guide.

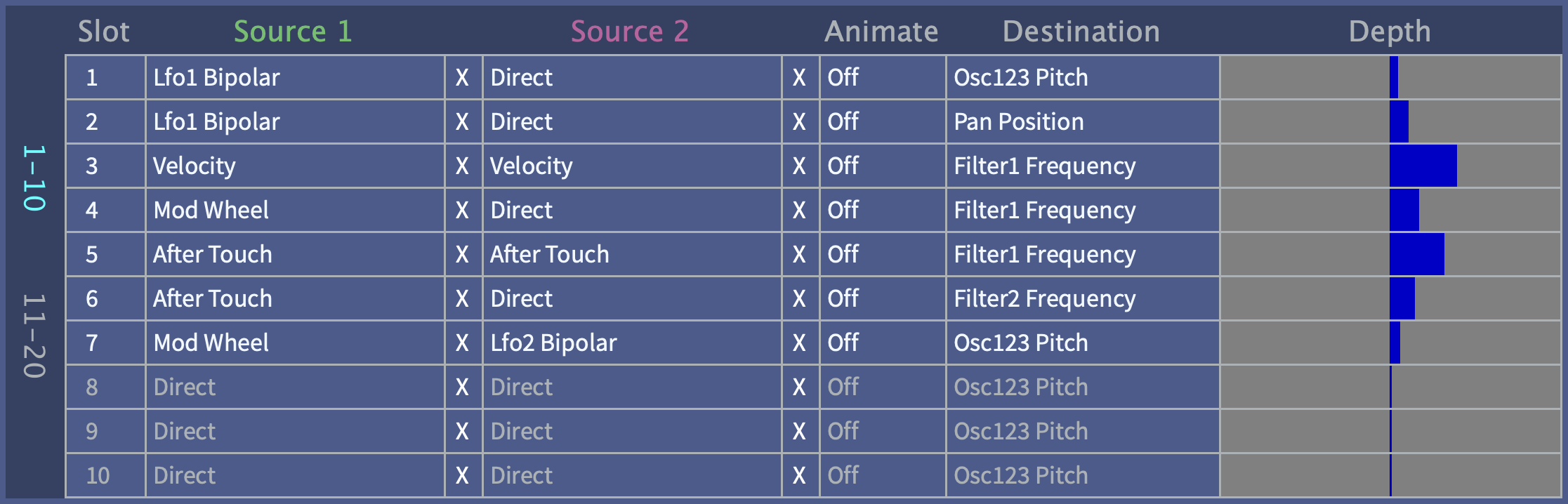

The table shows the 20 modulation slots at a glance. You can change the parameters for your mod either by clicking the table or in the Edit Modulation Slot section above. To adjust the mod depth, you can click and drag the Depth sliders in the table above.
For more information on the Mod Matrix, please see page 26 of the MiniNova user guide.
