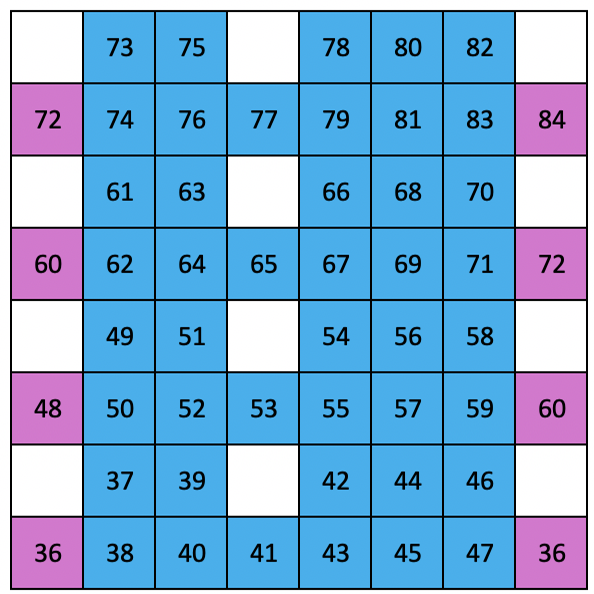

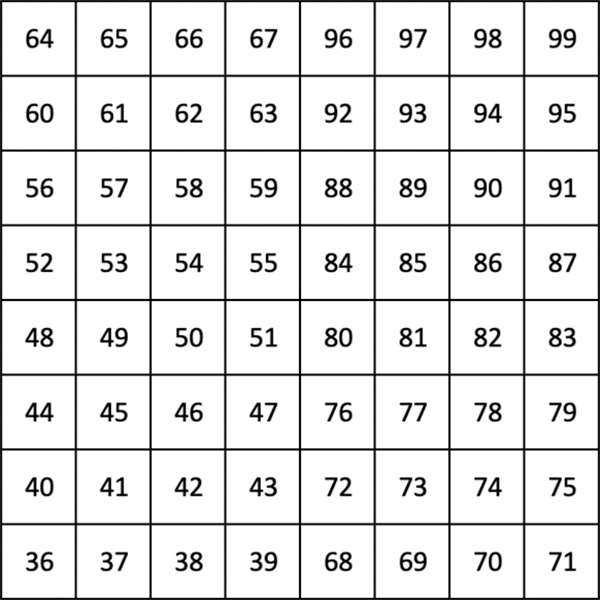

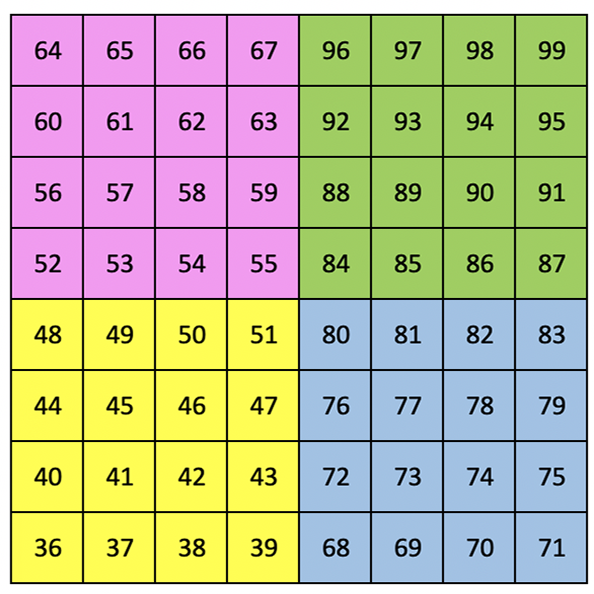

Custom 1: 8×8 grid, Momentary Note On messages (note numbers above) |
Custom 2: 8×8 grid, Momentary Note On messages (note numbers above) |
|
Custom 3: 8×8 grid, Momentary Note On messages (note numbers above) |
Custom 4: 8×8 grid, Momentary Note On messages (note numbers above) |

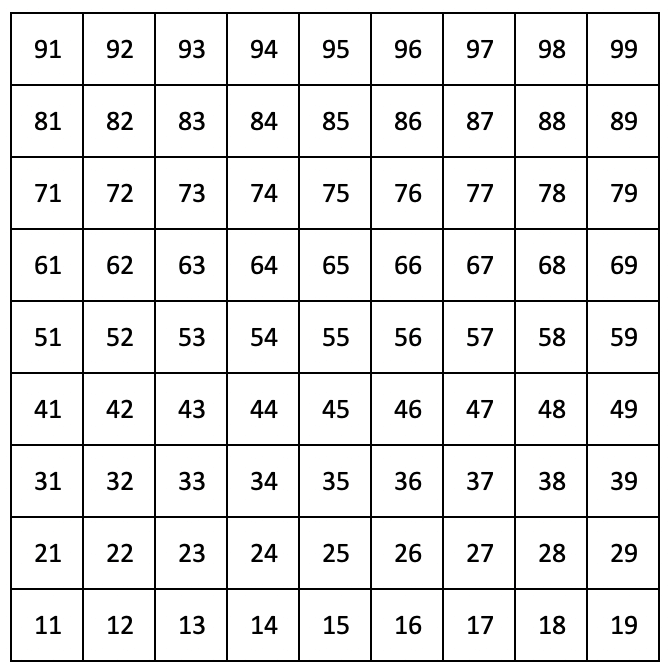

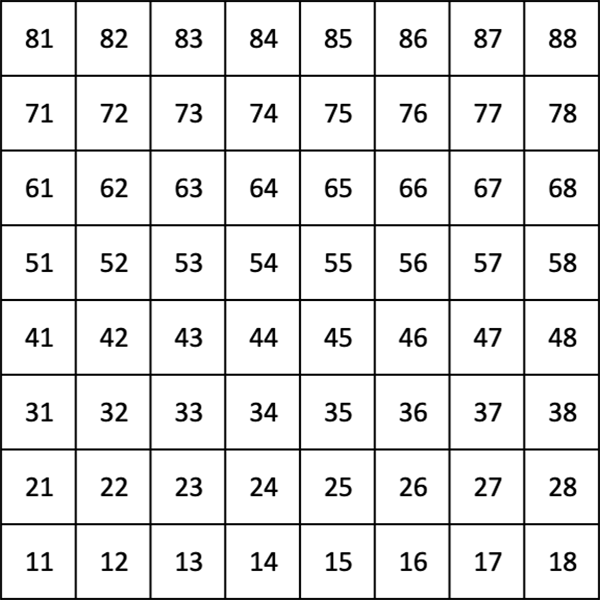

Programmer Mode: Includes buttons and pads (full 9×9 grid), logo LED may be addressed, Momentary Note On messages on 8×8 grid (note numbers below), CC messages sent from the top row and the right-hand column
For more detailed information regarding the MIDI implementation of Launchpad X, please see the programmer’s reference guide at:
