Launchpad X hardware overview

Updated

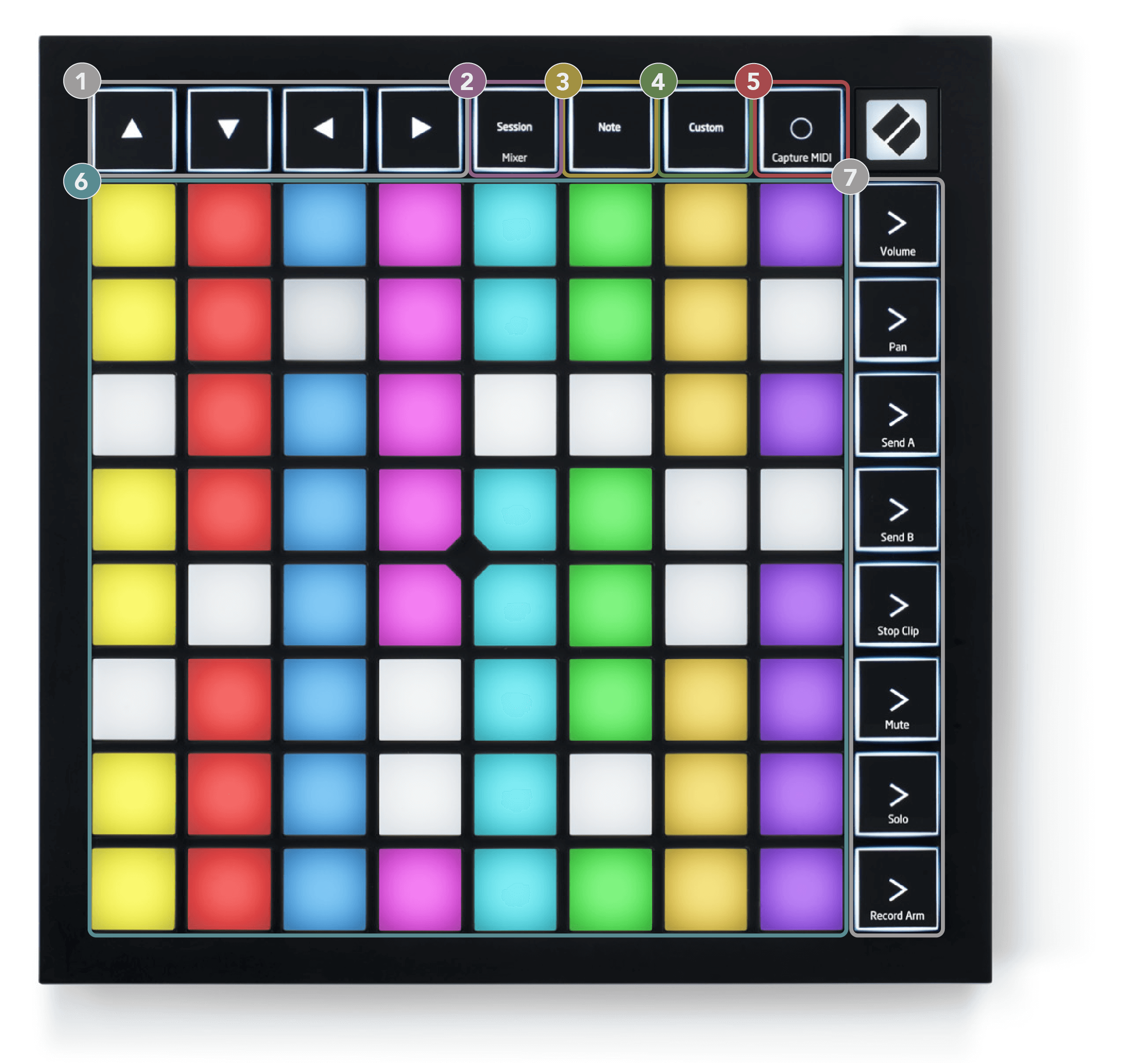

  1. Navigational Buttons

  2. Session Mode (+Mixer Toggle)

  3. Note Mode

  4. Custom Mode

  5. Record & Capture MIDI

  6. 8×8 Pad Grid

  7. Scene Launch & Mixer Buttons

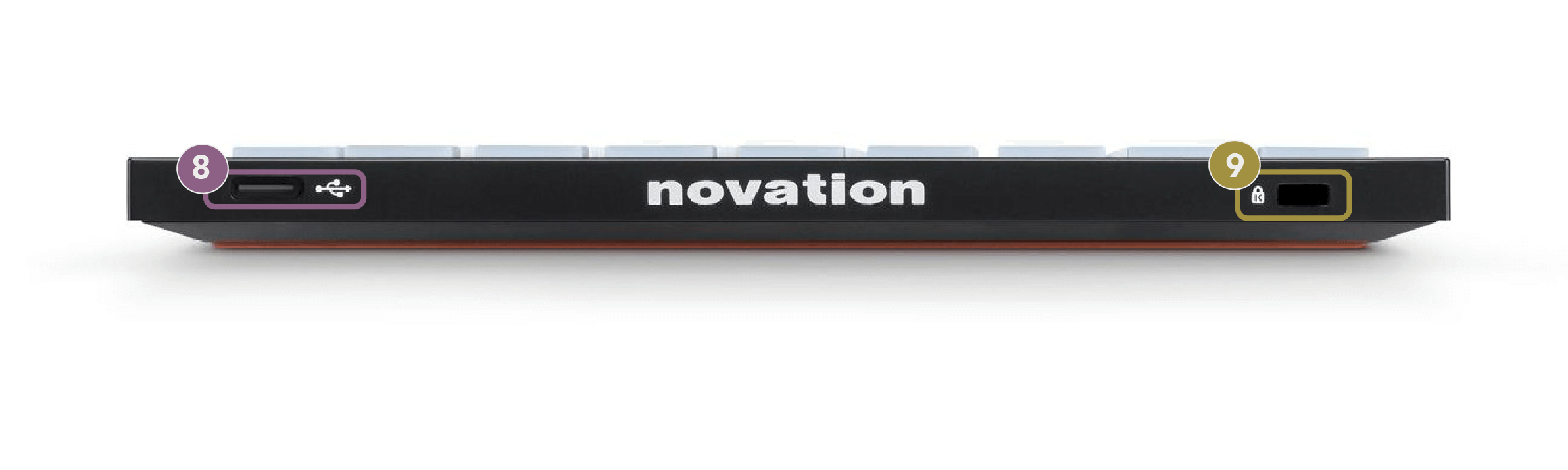

  1. USB-C Socket

  2. The Kensington lock icon. - Kensington Lock, use a lock to secure your Launchpad and deter theft.
