Weight |
8.04kg (17.73lbs) |
|
Height |
93mm (3.66") |
|
Width |
1274mm (50.16") |
|
Depth |
264mm (10.39") |

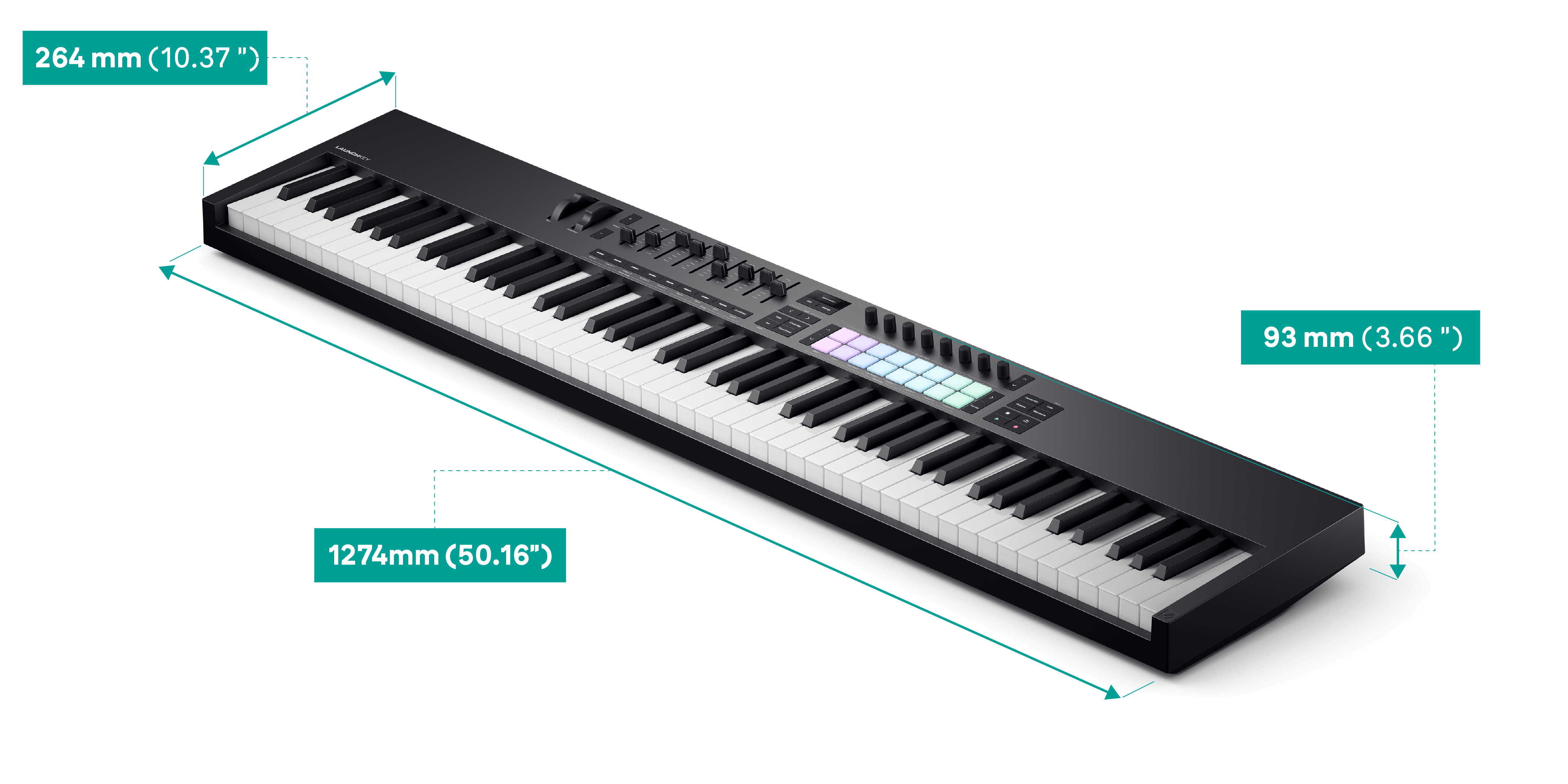

A diagram of the Launchkey 88 with dimensions.
This table gives you an idea of how the Launchkey 88 differs to the other models in the range.
|
Controls |
Launchkey Mini 25 and Launchkey Mini 37 |
Launchkey 25 and Launchkey 37 |
Launchkey 49, 61, and 88 |
|---|---|---|---|
|
Pitch and Modulation |
Two touch-strip controls |
Two wheels Edit and calibrate the wheels in Novation Components |
Two wheels Edit and calibrate the wheels in Novation Components |
|
Keys |
25/37 mini synth-action keys |
25/37 synth-action keys |
49/61/88 semi-weighted keys |
|
Velocity sensitive keys |
Yes |
Yes |
Yes |
|
Drum Pads |
16 |
16 |
16 |
|
Velocity sensitive pads with polyphonic aftertouch |
Yes |
Yes |
Yes |
|
Encoders |
8 |
8 |
8 |
|
Faders |
- |
- |
9 |
|
Buttons |
-- |
- |
9 |
|
Transport buttons |
Play Record |
Stop Loop Play Record |
Stop Loop Play Record |
|
Workflow buttons |
- |
Capture MIDI Undo (Redo) Quantise Metronome |
Capture MIDI Undo (Redo) Quantise Metronome |
