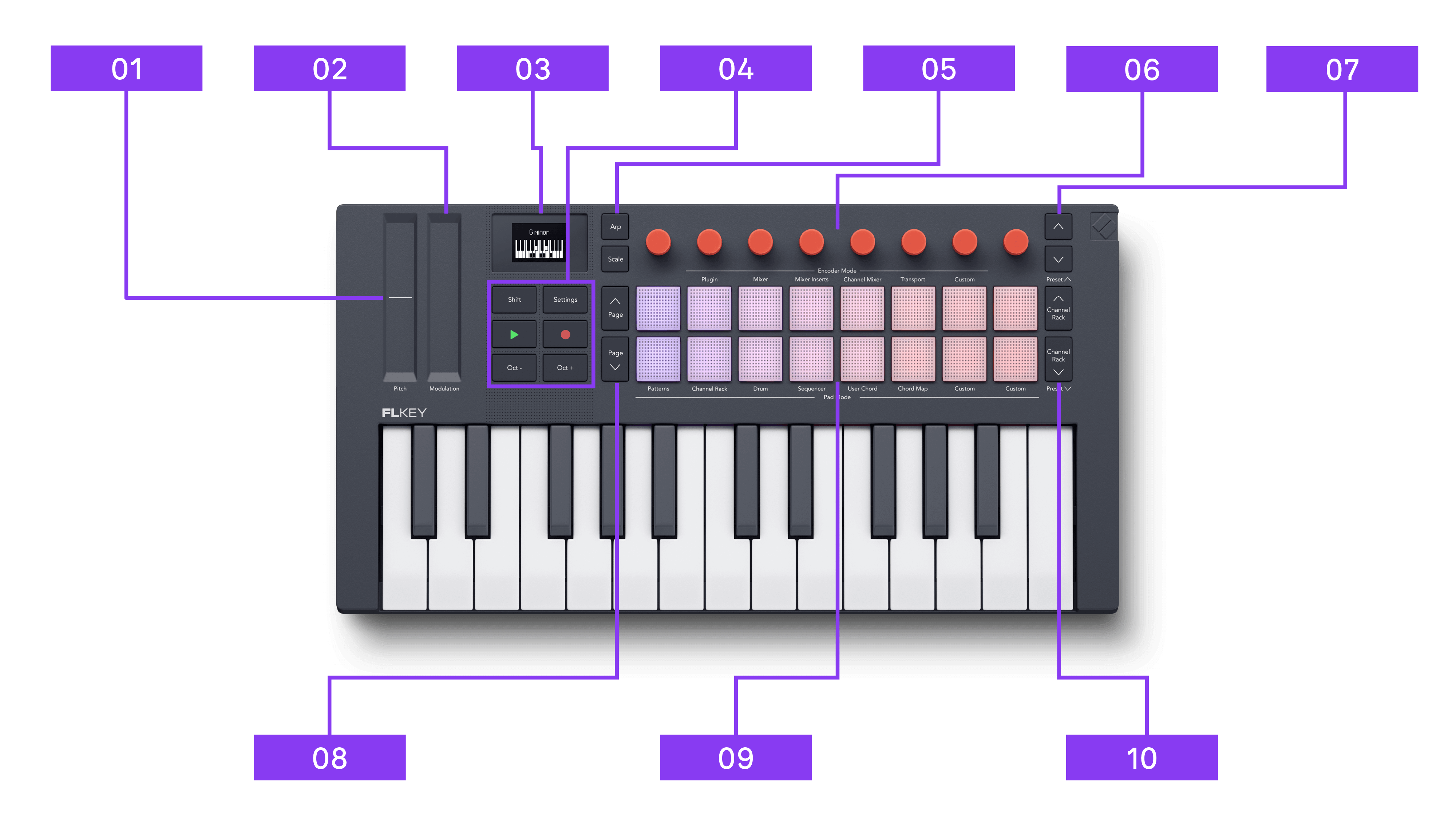

Pitch touch strip - bend the pitch of the note(s) you're playing and send pitch bend messages.
-
Modulation touch strip - a touch-activated strip to control any hardware or software parameter.
-
Screen - displays important information.
-
The six buttons below the screen left to right, top to bottom are the:
-
Shift button - access secondary controls assigned to buttons, visible in text on the front panel.
-
Settings button - access the settings menu.
-
Transport buttons - Play and Record buttons for controlling DAWs and sequencers.
-
Octave + and Octave - buttons - transpose the keyboard in octaves. Press both buttons to reset to the default octave.
-
-
The two buttons to the left of the encoders are the:
-
Arp button - enable and control FLkey 2's built in Arp (arpeggiator).
-
Scale button - enable and control Scale mode.
-
-
Encoders - assignable encoder controls.
-
Encoder bank ˄ up and ˅ down buttons - the two buttons to the right of the encoders move up and down through banks of encoder controls.
-
Page ˄ up and ˅ down buttons - two buttons to the left of the pads to move the pads up and down.
-
Pads - 16 pads that change functionality depending on the mode you select.
-
Channel Rack (Preset) ˄ up and ˅ down buttons - two buttons to the right of the pads to move up and down within the Channel Rack, or hold shift to change Preset.
-

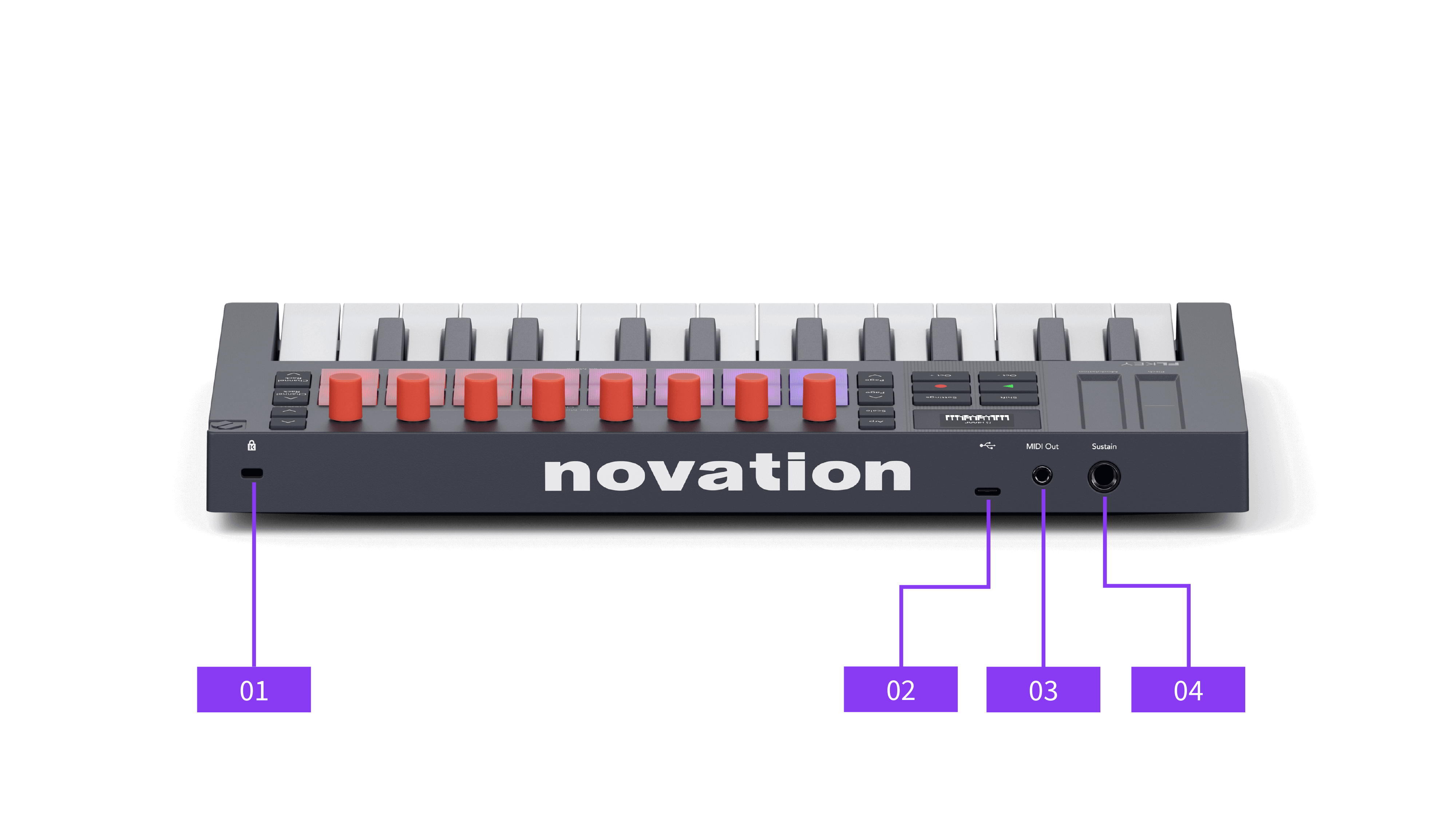

- Kensington Lock, use a lock to secure your FLkey 2 and deter theft.
-
USB Port – a type-C USB port. Sends and receives data, and powers your FLkey Mini.
-
MIDI Out port (TRS type-A) - sends MIDI from your FLkey 2 to external MIDI hardware.
-
Sustain input - connect a sustain pedal (expression, soft, and sostenuto pedals are not supported).
