Your Launchkey has a few areas of control we'll cover in the next few sections:
-
Encoders
-
Pads
-
Transport and workflow buttons.
Your Launchkey's encoders have eight modes. To change modes, hold the Shift button and press a pad from 1-8.
Some modes are only available while you're using a DAW. For more information, see the section relating to your DAW.
The encoder modes available are:
|
Drum Pad Number |
Mode |
Availability |
|---|---|---|
|
1 |
Plugin |
DAW Mode Only |
|
2 |
Mixer |
DAW Mode Only |
|
3 |
Sends |
DAW Mode Only |
|
4 |
Transport |
DAW Mode Only |
|
5 |
Custom 1 |
Always |
|
6 |
Custom 2 |
Always |
|
7 |
Custom 3 |
Always |
|
8 |
Custom 4 |
Always |
The pad for the current encoder mode lights bright pink. The other available modes light dim pink. Unavailable modes, for example, if you don't have a DAW open, are unlit.
When you enter an Encoder mode, the screen temporarily shows the control name and the mode you selected.
When you select a Custom Mode, the mode title is the name you give the Custom Mode when you create it in Novation Components. For more information, visit What is Novation Components?.
Your Launchkey has four Custom Modes. Custom Modes allow you to send customised MIDI messages from the controls. You can set up the messages each control sends in Novation Components.
When you move an encoder in a Custom Mode, the screen displays the parameter name and the value. You can set the parameter name in Components but if you've not set this the screen displays the destination of the MIDI message.
|
Default Encoder Custom Mode name. |
Encoder with a custom name. |
In each Custom Mode, there are two pages of encoder controls. To access the other page, press the Bank Next or Bank Previous buttons to the right of the encoders.
The default page is page one. On page one, only the Bank Next button lights to show you can access the second page. On page two, the Bank Previous button lights to show you can access the first page.
When you change the encoder page, the screen temporarily displays which page you're on.

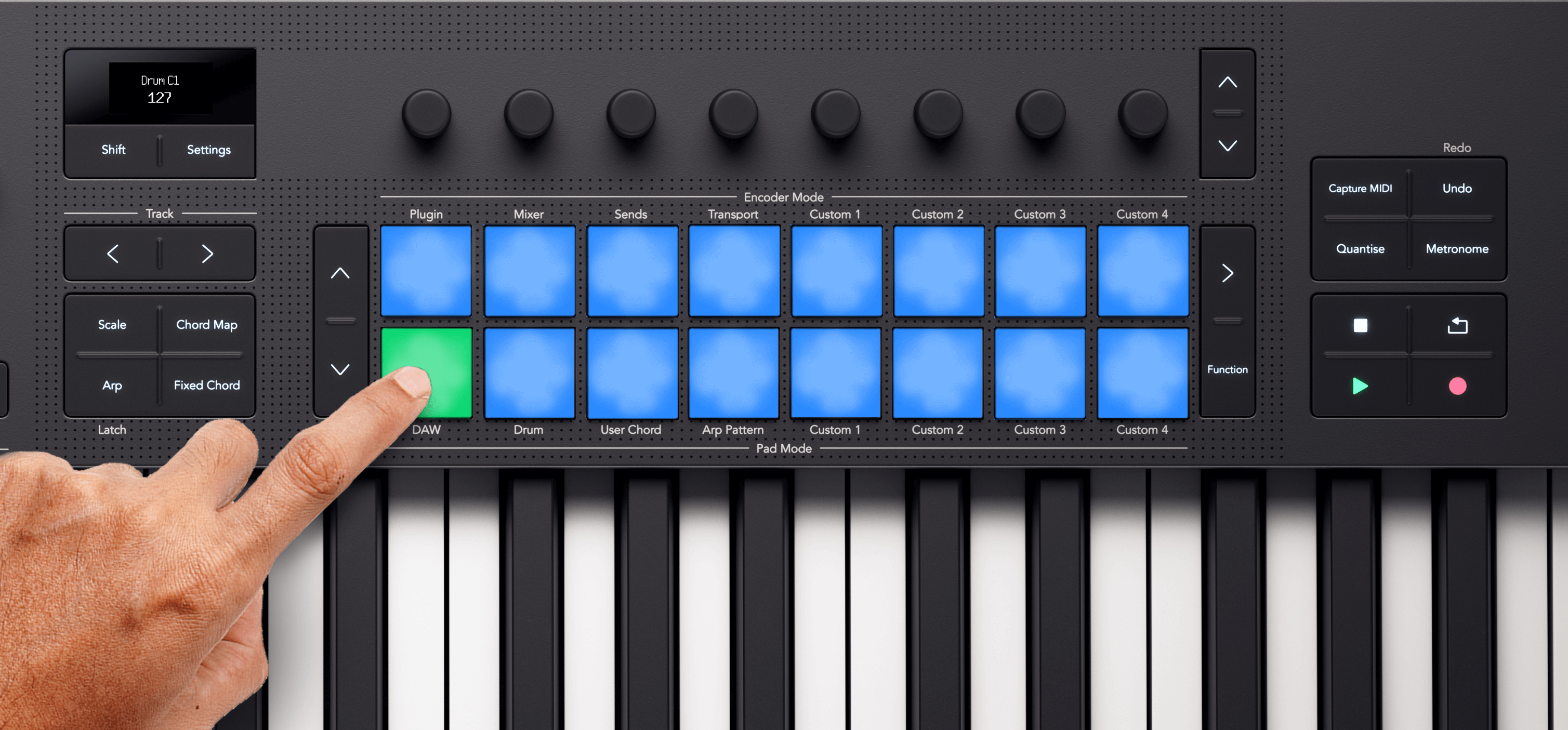

Your Launchkey's pads have eight modes. To change the mode, hold the Shift button and press a pad from 9-16.
Some modes are only available while you're using a DAW. For more information, see the section relating to your DAW.
Drum mode is the default selected mode, the pad modes available are:
|
Drum Pad Number |
Mode |
Availability |
|---|---|---|
|
9 |
DAW (see Common DAW Control) |
DAW Mode Only |
|
10 |
Always |
|
|
11 |

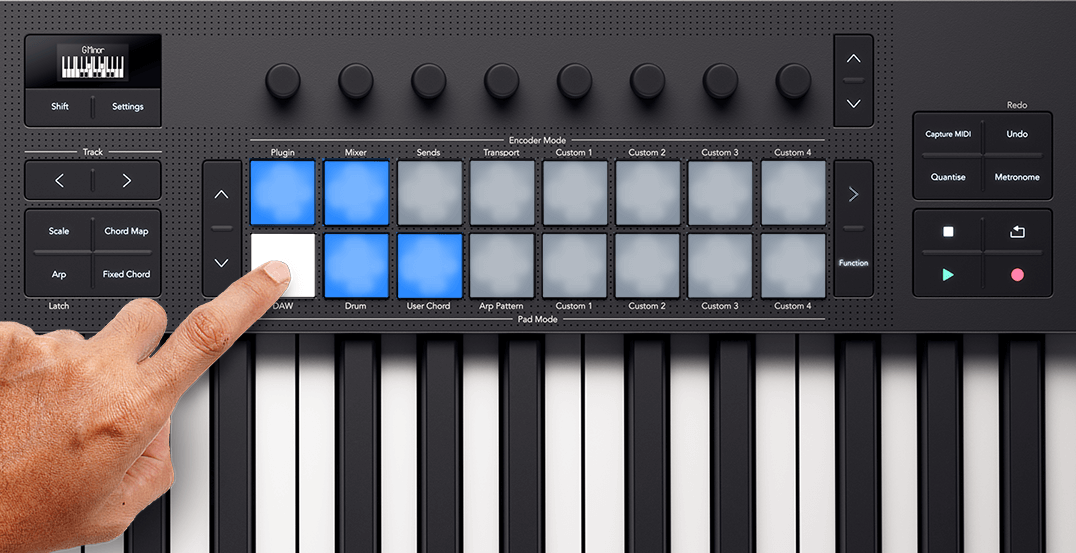

User Chord |
Always |
|
12 |
Always |
|
|
13 |
Always |
|
|
14 |
Always |
|
|
15 |
Always |
|
|
16 |
Always |
The last pad mode you select lights bright blue. The other available modes light dim blue, unavailable modes are unlit.
When you enter a new Pad mode, the screen temporarily shows the control name and the mode you select.
|
DAW Pad mode. |
Custom Pad mode with custom name. |
When you select a Custom Mode, the mode title is the name you give the Custom Mode when you create it in Novation Components. For more information, visit Components.

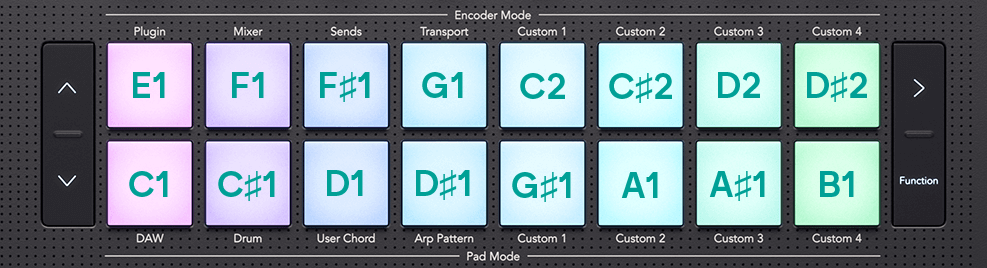

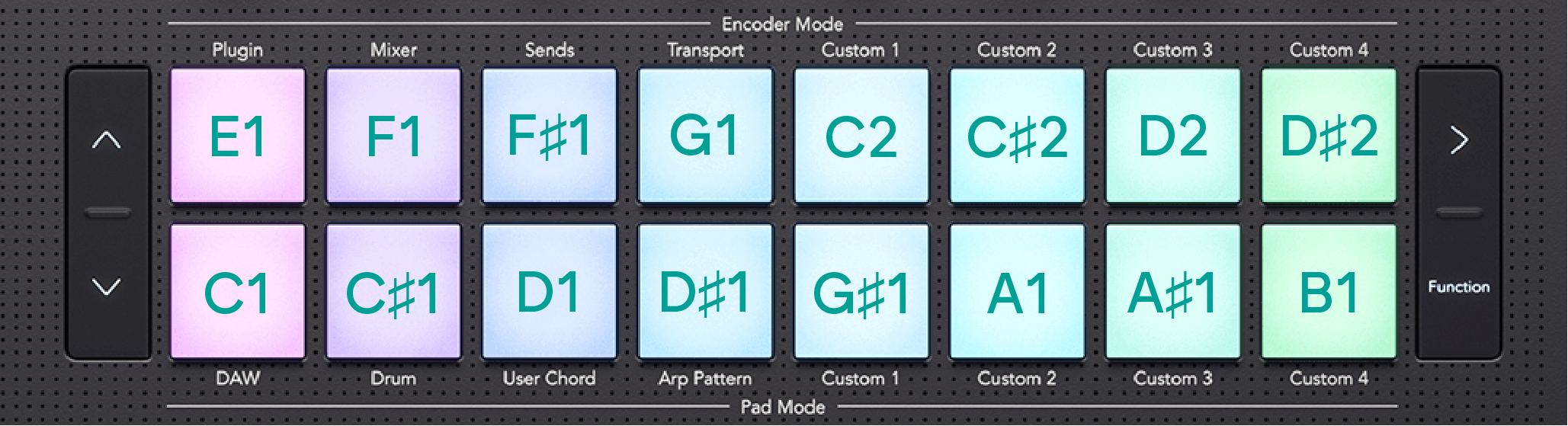

When you select the Drum pad mode, the pads trigger MIDI notes. By default, the notes are arranged from C1 to D♯2 (bottom left to top right) and on MIDI channel 10.
In Drum mode, the pads light blue outside your DAW and the track colour in your DAW. The pads light when you play the pads.
Your Launchkey has four Custom Modes. Custom Modes allow you to send customised MIDI messages from the controls. You can set up the messages each control sends in Novation Components.
When you enable a Custom Mode, the pads output custom messages you can set up in Components.
When you press a pad in a Custom Mode, the screen displays the parameter name and the value. You can set the parameter names in Components but if you've not set this the screen displays the destination of the MIDI message, e.g. CC 21.
