Shown below are the Note numbers for each of the default Custom Modes and Programmer Mode. Note 36 is Middle C.
|

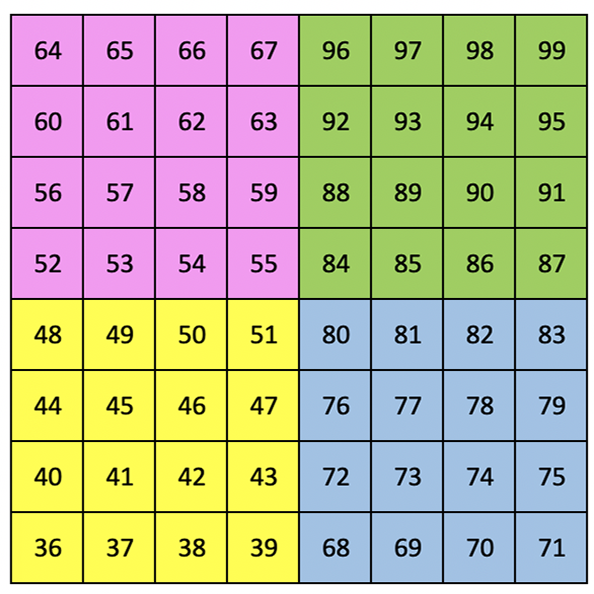

Drums Mode (Custom): 8x8 grid, Momentary Note On messages (note numbers below) |

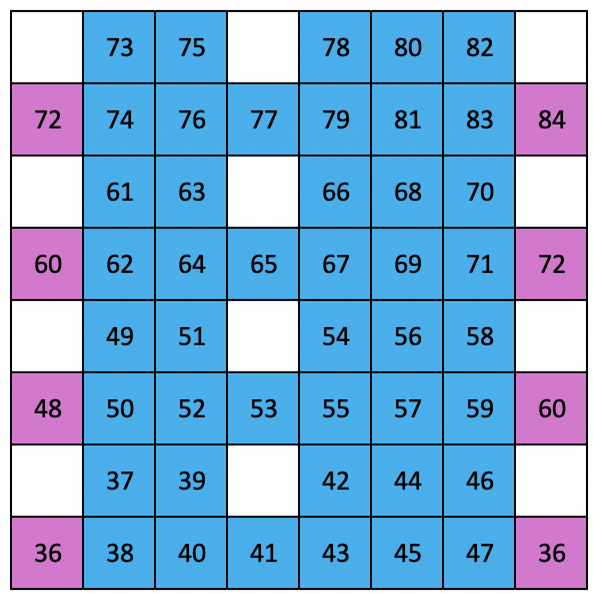

Keys Mode (Custom): 8x8 grid,Momentary Note On messages (note numbers below) |
|

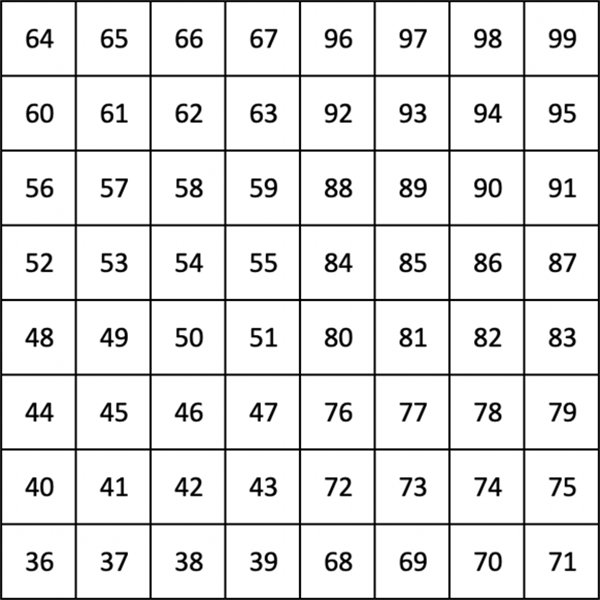

User Mode (Custom): 8x8 grid, Momentary Note On messages (note numbers below) |

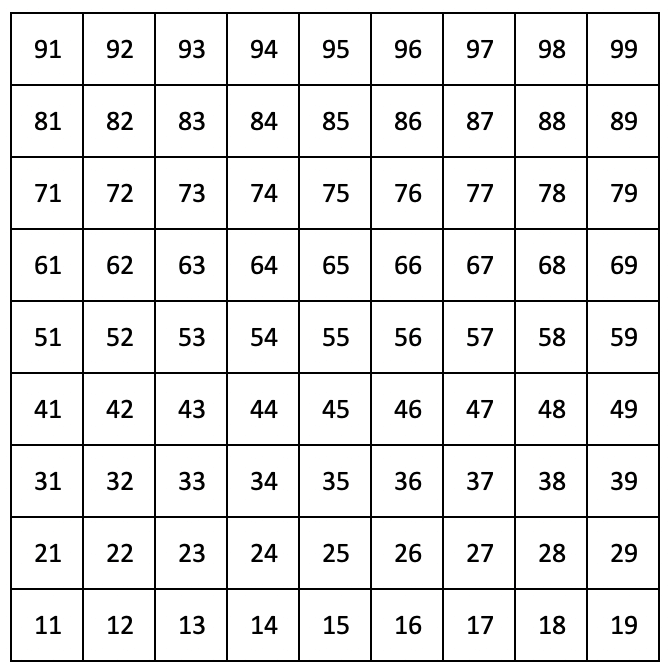

Programmer Mode: Includes buttons and pads (full 9×9 grid), logo LED may be addressed, Momentary Note On messages on 8×8 grid (note numbers below), CC messages sent from the top row and the right-hand column |
For more detailed information regarding the MIDI implementation of Launchpad Mini, please see the programmer’s reference guide at:
